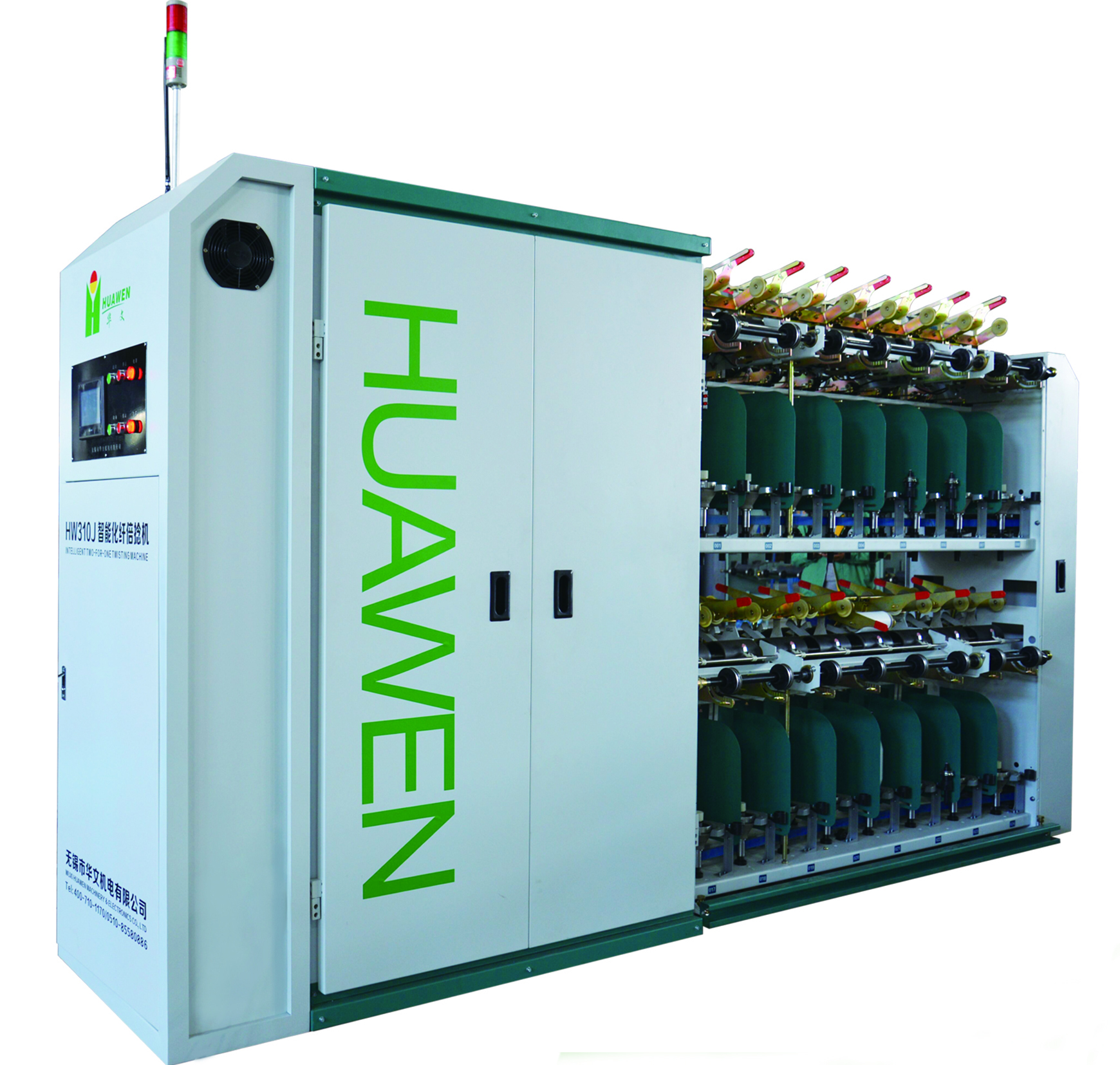

HW310J Intelligent Two for one Twisting Machine
Applicable for chemical fiber filament yarn, such as DTY, POY,
FDY, ITY etc.
| Main Specifications:
|
|
1
|
Spindle Number
|
256 Spindles as Standard (32 spindles per section )
|
|
2
|
Spindle Type
|
Φ90 Conical Spindle
|
|
3
|
Spindle Distance
|
225mm
|
|
4
|
Usual Rotating Speed
|
2000-12000r/min
|
|
5
|
Twist Range
|
60-3200T/M
|
|
6
|
Twist Direction
|
s or z way
|
|
7
|
Unwinding Bobbin Speciation
|
Φ100×Φ42×L270-320
|
|
8
|
Winding Capacity
|
(Raw Yarn) 750g-1200g
(Manufactured yarn) 500g-1500g
|
|
9
|
Winding Method
|
Electronic forming, flangeless bobbin collective winding,
conical or cylindrical bobbin crossing winding
|
|
10
|
Tensioner:
|
Elastic Tensioner and Cushion Tensioner are put in use together
|
|
11
|
Operating Method
|
Two Side, Two Layers Low Machine Body
|
|
12
|
Starting mode
|
Touch screen + PLC + Inverter starting
|
|
13
|
Application
|
45D-500D single/double chemical fiber filament yarn
|
|
14
|
Outside Dimension
|
16410×750×1950mm
|
|
