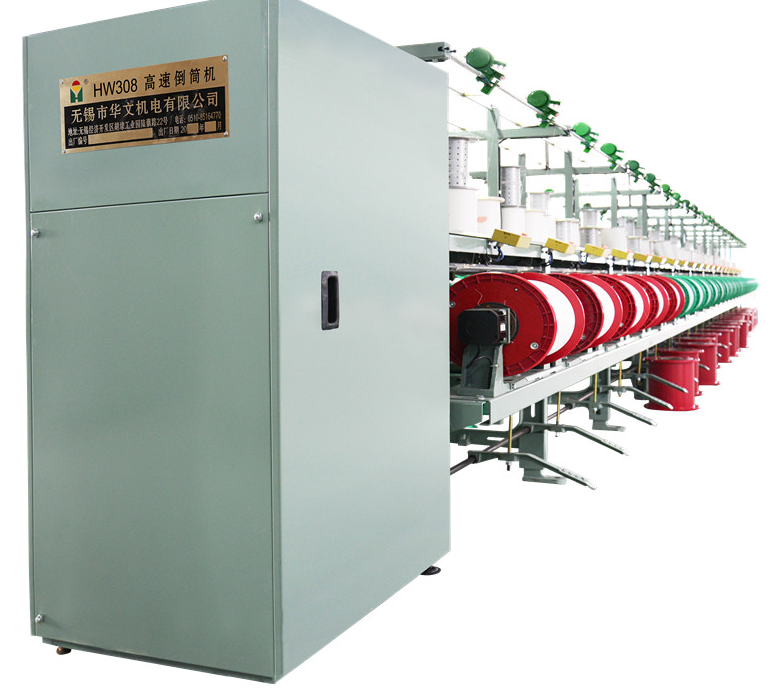

HW308 High Speed Jumbo Winder Machine

HW308 High Speed Jumbo Winder Machine
This machine in an equipment of posterior job for chemical fiber two-for-one twisting machine. It can be located 3KG and 5KG of bobbin for air-jet, water-jet etc. It redraws winding-up bobbins on two-for-one twisting machine into big winding rolls and in association with shuttle less weaving loom to reduce time of machinery stop and elevate working efficiency.Single spindle control, bobbin-unloading by foot pedal, easily and quickly operatable; concentrated control on yarn-removal and winding speeds; large winding capacity. Reduced bobbins change manoeuvers.Elevated productivity.

Main Specifications:

1 Type Left & right Symmetry
2 Spindle Number 36 Spindle (4 increase or decrease)
3 Spindle Distance 1220mm
4 Max.Winding Speed 700m/min
5 Bobbin Size L240xΦ300xΦ300 mm
6 Max. Yarn load Weight 3kg/5kg
7 Motor power 120w (Spindle)+60w
8 Outside Dimension 11580x1200x1830 (36 spindles)
9 Weight About 2500kg
10 Winding Form Parallel Winding
11 Thread Quide Traverset 300mm
12 Spindle distance 565mm
