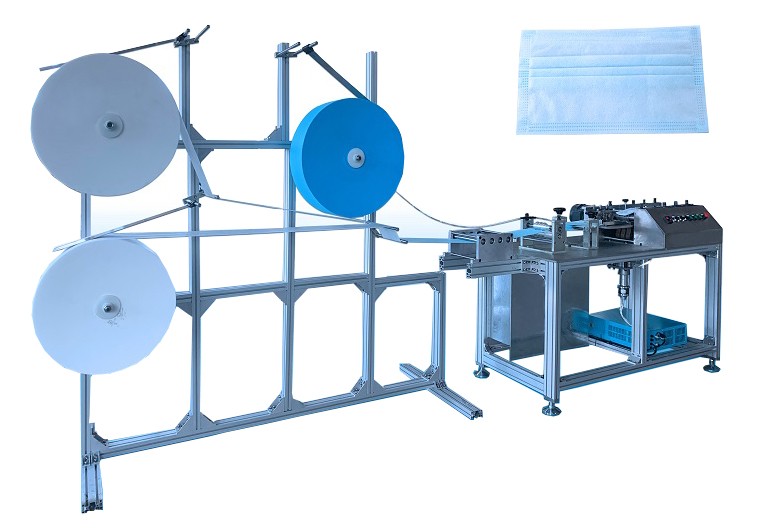

| HW206 Semi-automatic Flat Mask Making Machine （For 3ply Flat Mask） |
Brief Introduction

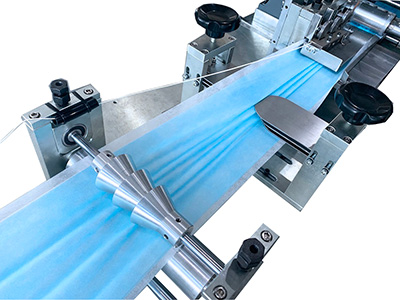

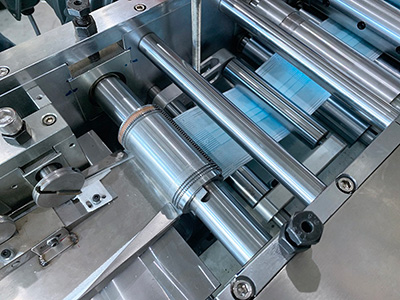

The semi-automatic mask making machine is mainly used for the automatic forming of the flat mask. The whole roll of cloth is driven by the roller after unwinding. The cloth is automatically folded, wrapped, pulled and uncoiled by the whole roll of the nose beam strip. After the fixed length cutting, the cloth is imported into the wrapped cloth. The two sides are welded to the sealing by ultrasonic welding. After the ultrasonic side sealing, the cloth is cut and shaped by the cutter, and the whole process is automatically controlled. This machine only needs one person to operate; scientific and reasonable mechanical transmission configuration makes the machine work with high efficiency, special welding wheel and cutter wheel design, good wear resistance, greatly improving the service life of the product.
Installation and Configuration Requirements
| Name |
Parameters |
| Dimension： |
3600mm (L) x 800mm (W) x 1990mm (H) |
| Weight: |
335KG |
| Working power supply: |
AC 220V，50HZ，Rated power: 3.5kw |
| Operating environment: |
Temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than grade 100000) |
Machine Features:
The machine adopts aluminum alloy structure, small volume, stable operation and low scrap rate;
One set mask making machine only need one worker to load and unload materials;
The machine is equipped with photoelectric detection, automatic counting, controllable production speed and high output;
It can produce about 130-180 pieces per minute, and can produce (3-4 layers) multilayer masks.
